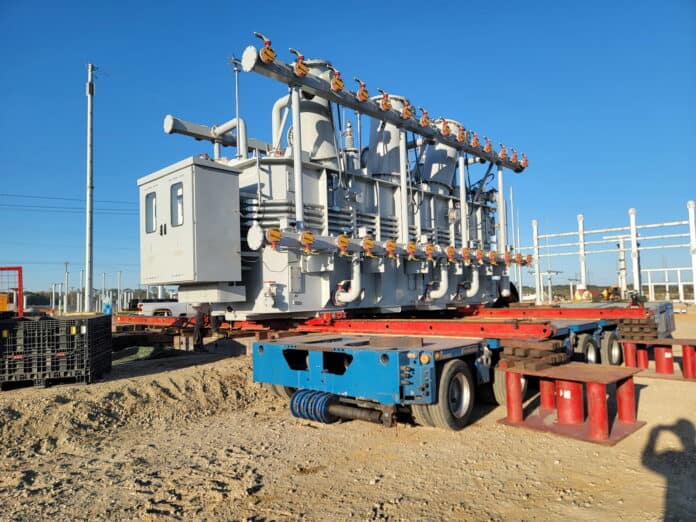

The shipping of large cargo such as transformers, wind turbine blades, or heavy industrial components requires not only requires large trucks and cranes, but involves extensive planning, technicality, and risk mindfulness at each phase. Planning project logistics demands that there be coordination of the tasks of several projects on engineering, regulatory, and operational boundaries in such a way that such mega loads move safely. These crucial steps are done from the time the cargo is moved out of the loading facility and repeated throughout the journey up to the point at which the cargo is finally delivered to its destination.
Any shipment that is larger or heavier than the legal size that can be transported by road is categorized as oversized or heavy-lift cargo. The trailers that are used in these loads are usually specially designed and permits and escorting vehicles are generally needed. Challenges include low-clearance overpasses, tight turns, and low bridges. The terrain may not provide extreme weight support.
The Physical Survey
The first step in any oversized transport project is the first route survey. This is the process of tracing the routes between the origin source and the destination. This process will actualize any restrictions and decides whether the current infrastructure routing is adequate to carry the load or not.
The logistics engineering teams including Project Managers drive through the proposed route to check the bridge clearances, pavement strength, width of the road, and road gradients. Once completed, they must work with local highway agencies, rail operators and utility companies to adhere to any changing infrastructure where necessary. This survey determines the feasibility of the move, including the type of transport equipment to be used, as well as the scheduling of the move.
Comprehensive Transport Plans for Oversized Cargo
After the survey has been done, logistics planners come up with a comprehensive plan of transport. This includes the below areas.
1. Load Configuration
Engineers and Project Managers generally decide on the way the cargo is going to be loaded into the transport vehicle, and how it is going to be balanced, and how it is going to be fixed.
2. Equipment Choice
The selection of equipment that will occur is that of a specialized trailer (modular hydraulic-platform or self-propelled modular transporter (SPMTs)), depending on load distribution and maneuverability.
3. Permit Applications
The oversized loads also need route-specific permits, which in many cases incorporate more than one jurisdiction. They can involve the rights of the closures of the trail, passage through the police escorts, and provisional road obstacles such as road signs or the elimination of power lines.
4. Time Windows
A good deal of the work requires completion when there is low traffic, at night, or weather conditions.
How to Ensure Successful Oversized Cargo Movements
Unavoidable delays that are expensive and can be prevented through proper documentation and ensuring that the permits are submitted early enough. To avoid conflicting requirements, the project managers must adhere to permit timelines.
Once the cargo starts moving, accuracy and communication are the key components. A convoy generally consists of the transport vehicle, several escort cars, a traffic control team, and in some cases, utility crews, to lift or disconnect overhead lines.
Upon arrival at the site, the cargo must be unloaded with the same careful attention that was done during the loading. The cranes or gantries are positioned based on the lift plans, which are engineered. The teams ensure that the site conditions are the same as those in the survey, as changes made at the very last moment may introduce risks.
Risk Planning for Oversized Shipments:
1. Damage to Infrastructure
Structural checks. Conduct structural checks before walking over bridges or culverts. Stiffen tempers worse ere sound; or find other ways.
2. Weather Problems
Check weather projections continuously; create non-rigid time frames so that high winds or heavy precipitation cannot occur and cause loads to lose their stability.
3. Equipment Failure
Carry out pre-departure examinations on trailers, hydraulic systems, and tie-down equipment. Have spare parts, a reserve machine, and equipment.
4. Regulatory Delays
Keep in touch with authorities that allow the operations and use local agents who are familiar with the laws of the region.
Precision, Planning, and Partnership
Transportation of large cargo is an integrated exercise of engineering, logistics, and administration competencies. This has been successful depending on the careful road survey, thorough planning, professional performance, and risk mitigation.
Each of the stakeholders, such as the surveyors and engineers, regulators, and drivers, must play a pivotal role so that these titanic moves can be made safely and efficiently.
Transportation of oversized cargo in the transport logistics of any project is not limited to the transportation of goods, but also the precise, prospective, and reliable movement of sophisticated systems.
